Election Technology in Kenya

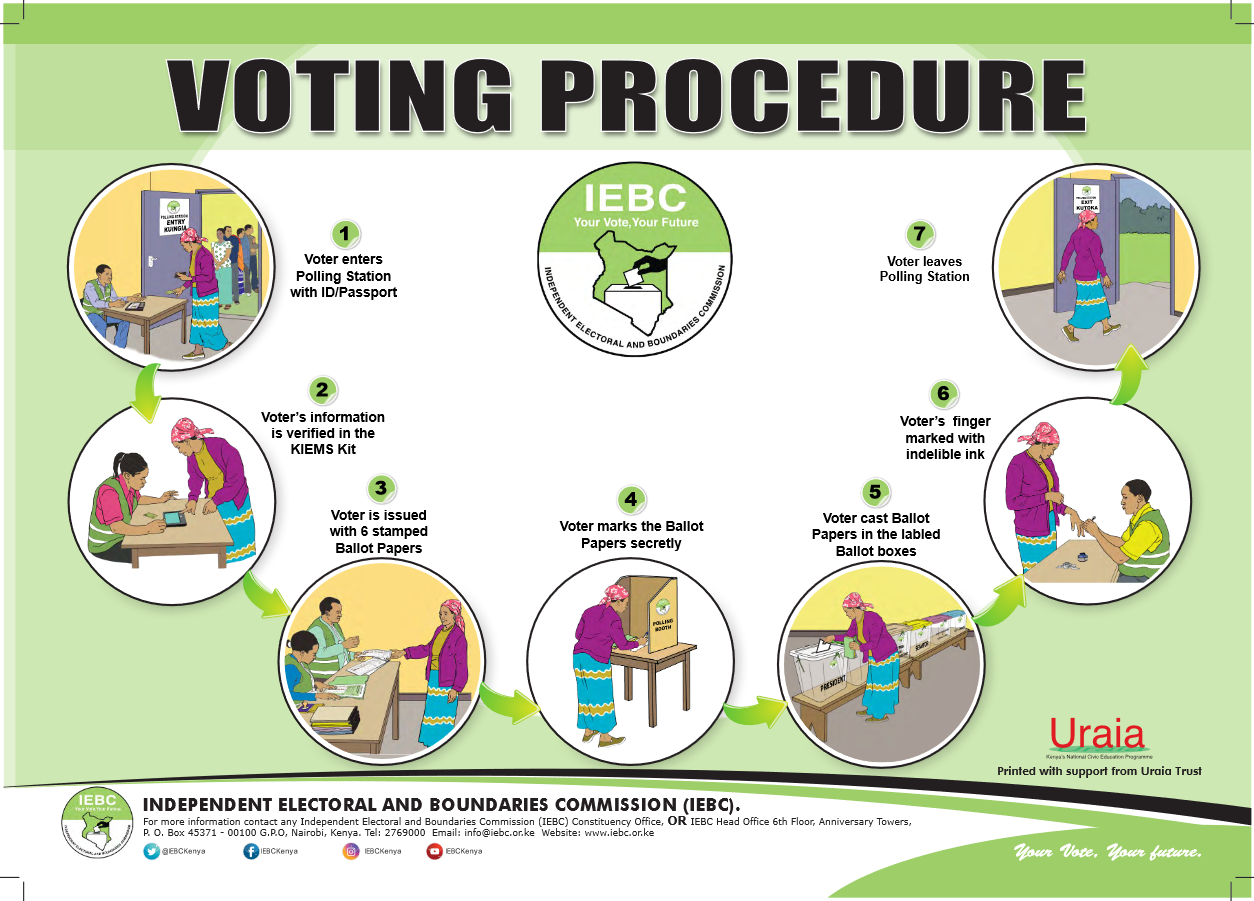

The Kenyan voting procedure has the following steps:

• Elector presents Valid Kenyan ID Card or Passport to IEBC clerk.
• Elector places finger on the Electronic Voter ID system.

OR

• Elector is confirmed to be on the printed copy of the register, and fills FORM 32A allowing them to vote.

THEN

• Clerk returns IEBC stamped ballot papers.
• Elector votes in secret & casts ballot in the boxes.
• Elector has their little finger marked with indelible ink.

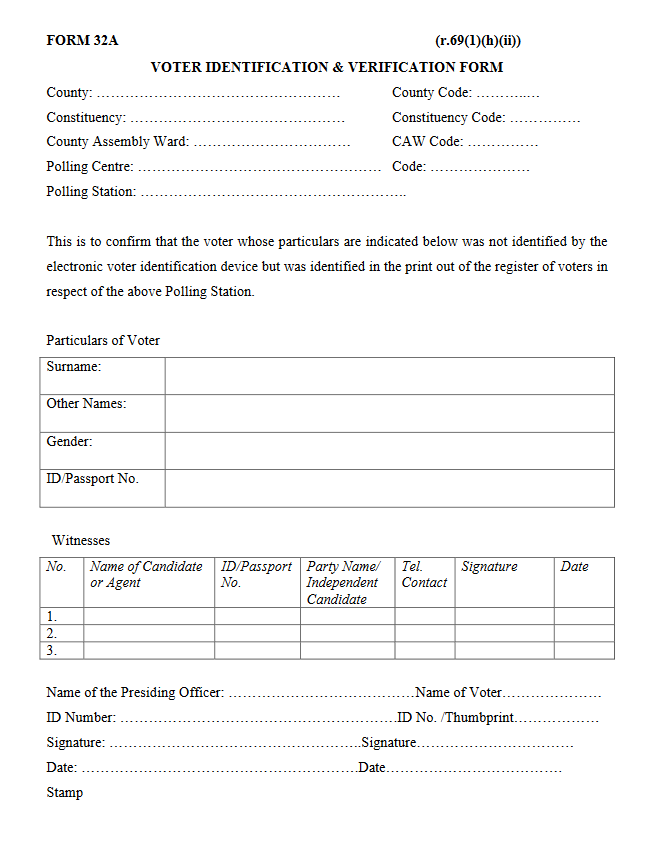

FORM 32A

Counting and Tallying Process

The following steps comprise the counting and tallying process:

1. The process shall be continuous and not be interrupted, “so far as practicable.” Regulation 75 (4)
2. The Presiding Officer [PO] shall empty the ballot box onto the counting table for sorting purposes.
3. The PO takes one ballot paper after another, displays it to the observers and agents for verification of the ballot
4. He should call out the name of the candidate in whose favor the vote was cast.
5. In the process he should place the ballot papers on a separate pile for each candidate,
6. Then should count the votes for each candidates and
7. Fill out the result on the tallying sheet (Form 33 in the Regulations Schedule)

After tallying, the results are recorded on Form 34A.

FORM 33

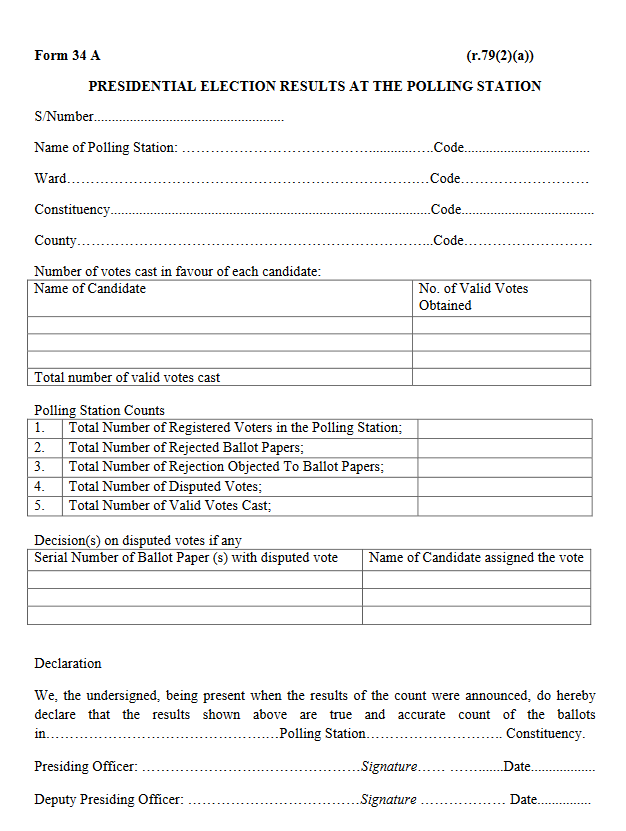

FORM 34A

Results Transmission Process

A digital copy of the Form 34A is made, and sent together ("bundled") with a textual representation of the results for centralised provisional tallying. The physical papers are couriered in parallel as an official record.

2013 Election - the first deployment of BVR in Kenya

In the 2013 Elections, a significant number of polling stations saw the kits procured for both Electronic Voter Identification and Results Transmission failing.
As of 2013, only 23% of Kenya had electricity, the school buildings being used as polling stations generally were not equipped with power outlets -- with this being particularly true in rural areas.
As a result, when the laptops being used for Electronic Voter Identification began to run out of battery, they were unable to be charged, forcing clerks to resort to the printed register for manual verification of voters.
In addition, the mobile phones supposed to pass tallies of provisional results for centralised calculation didn't work due to forgotten PINs, low battery, and data connectivity problems, with poll workers being airlifted by helicopter to Kenya's capital, Nairobi, to hand-deliver results to the IEBC.
Confounding these troubles, the IEBC's centralised tallying servers overloaded and collapsed after processing only 17,000 of the 33,000 polling station results forcing the IEBC to suspend announcing provisional results, having to wait for the physical FORM 32As to arrive into Nairobi.
Further, a "computer bug" was blamed for counting each rejected ballot 8 times in the initial tally - artificially inflating the number of rejected ballots to more than 330,000 instead of the correct figure of circa 41,500.
After 6 days, opposition candidate Uhuru Kenyatta was announced as the winner, having polled 50.07% - a minuscule majority of just 8,000 out of 12 million ballots cast.
The losing incumbent Raila Odinga alleged voter fraud and petitioned Kenya's Supreme Court for the nullification of the official results, which led to a recount of ballots at 22 polling stations. After this recount, Uhuru Kenyatta was affirmed as the President Elect of Kenya.
The machines procured for the 2013 election were ultimately put into storage, with 125 of the Electronic Voter ID kits going on to be stolen.
The Commission stated that these devices only contained raw registration data that has not been processed for inclusion in the register of voters, and that any data stored on the devices is encrypted at rest.

2017

Having deprecated and put the kits procured for the 2013 election into long-term storage, in 2017, the Kenyan government went on to contract OT Morpho/IDEMIA - the successor company to Safran Morpho - for 45,000 MorphoTablets, boasting the following specification:

• An 8-inch WXGA (800*1280) display
• Qualcomm Snapdragon 410 processor
• 2GB RAM
• 16GB internal storage expandable via Micro SD Card
• A 5100mAh battery said to last upto 24hours
• 13MP main camera and a 2MP front camera
• 3.5mm headphone jack
• Optical fingerprint reader
• Contact and Contactless smart card reader capabilities
• Dual SIM support with 4G voice and data support
• Android 5.0 Lollipop
• Bluetooth 4.1 (BLE)

Each tablet contained a Micro SD card loaded with the roll of eligible voters for a given polling booth. As described in the Voting Procedure section, electors were identified by the MorphoTablet using their fingerprint.
In addition to Electronic Voter Identification, the tablets were to be used for provisional results transmission. After filling out the official results form (Form 34A), the presiding officer at each station was to key into the tablets the numeric results, together with a scan of the form - referred to as a Bundle. During testing it had been demonstrated that the send icon on the tablet was disabled until the scanned form had been added[https://nation.africa/kenya/news/politics/IEBC-tests-results-transmission/1064-4042450-lpl4hmz/index.html].
Things turned out differently on the day, however. A configuration mistake on the tablets meant that the presiding officers were able to submit the numeric results without attaching a copy of the official results form (Form 34A). In addition, many of the Form 34As which were attached were simply photographs taken with the tablet's inbuilt camera rather than legible scans of the document - and at least one Form 34A was handwritten in a school exercise book
To give connectivity for results transmission, the tablets were given SIM cards for two different Mobile Network Operators from Safaricom, Telkom Kenya, and Airtel Kenya which provided a VPN. However, 11,000 - one quarter of all polling stations - were said to be outside 3G range in the 2017 polls.
The IEBC announced from provisional results that the incumbent President Uhuru Kenyatta had won the election with a margin of 9%, receiving 54% of the votes cast and beating the 50% threshold for a run-off.

Accusations of hacking ("Fungua server")

The opposition leader, Railia Odinga, told a news conference that "the 2017 general election was a fraud" and immediately petitioned the Kenyan Supreme Court to annul the vote.
Just days before the 2017 elections, the chief of IT for KIEMS - Chris Msando - was found dead, having been tortured and murdered. The opposition claimed he had been killed after refusing to surrender a password to rig the election. Mr. Odinga further claimed that between 12:37 p.m. and 4:00 p.m. on the day of the election, hackers had used Chris Msando's login credentials to load “an algorithm which is a formula to create a percentage gap of 11 percent between our numbers” - to doctor results from polling stations in favour of the incumbent.
Responding to this, the IEBC's Chair dismissed the hacking claims, stating “hacking was attempted but did not succeed”, with the IEBC's' Chief Executive going on to tell a news briefing: “I wish to confirm that our elections management system is secure, [...] There were no external or internal interferences with the system at any point before, during and after the voting.”
The Swahili phrase Fungua server ("Open the servers") became a mantra for the opposition in Kenya.
In response to Mr. Odinga's Court Petition, the Kenyan Supreme Court ordered IEBC to open its servers to inspection, which it refused to do.

August 2017 - election annulled

In its Determination on the Petition, the Court was satisfied that the IEBC "committed irregularities and illegalities inter alia, in the transmission of [the 2017 Presidential Election] results" and that these affected the integrity of the election.
In a majority 6:2 judgment, the Supreme Court granted the petition and annulled the vote, ordering another vote to be run within 60 days.
Philomena Mwilu, the deputy chief justice, whilst reading out portions of the judgment said the Court upheld the opposition claim that the election result was declared before all results from more than 40,000 of Kenya's polling stations had been received.

October 2017 - election re-run

The Opposition set out 25 demands of the IEBC for the re-run, with Railia Odinga ultimately pulling out of the re-run election and urging his followers to boycott the poll.
With polling suspended in 25 opposition stronghold constituencies due to alleged security risks, incumbent Uhuru Kenyatta was again declared winner, receiving 98% of the vote on a turnout of just under 39%.
After the re-run election, petitions were again made to the Supreme Court, although ultimately they were dismissed by the Court, who upheld the re-election of Kenyatta.
In 2020, the Kenyan Parliament passed a recommendation barring IDEMIA from future tenders for a period of 10 years, but this was overturned by Kenya's High Court in May 2022

2022 Presidential Election

In April 2021, in preparation for the 2022 election, the IEBC released a tender for upgrading KIEMS and providing MorphoTablets. After the initial process was annulled by Kenya's Public Procurement Administrative Review Board (PPARB), on the 3rd November 2021, the IEBC announce the award of the tender to Smartmatic International Holdings BV.
Of the 45,000 kits acquired for the 2017 elections, the IEBC stated 41,000 were "in good working condition". The tender saw Smartmatic providing 14,100 additional MorphoTablets, along with a custom OS and replacement software to run on all 55,100 kits.
There were reports that IDEMIA withheld the biometric and voter data they had collected, refusing to transfer it to Smartmatic based on outstanding payments owed by the IEBC. This issue was ultimately resolved outside of the courts.
Learning from connectivity failures in previous years, it was found 1,111 polling centres did not fall within 3G coverage areas, with the IEBC providing Thuraya Satellite Phones to transmit results from stations within the polling centres.

2021 Voter registration and abnormal voter transfers

Using its new powers, in 2021 the IEBC engaged KPMG to conduct an audit of the voter register to verify its accuracy including recommendations for enhancing its accuracy, as well as to update the register.
To finalise the list of eligible voters, and in accordance with the Elections Act, the IEBC conducted three rounds of voter registration over October-November 2021, January-February 2022, and a final round ending in May 2022 using the MorphoTablets' BVR functionality, originally trying to reach six-to-seven million new voters. They later dropped this target to 4.5 million, but saw uptake of under 2% in cities such as Mombasa, with particular apathy amongst younger, newly-eligible electors.
In parallel to the voter registration system, the Kenyan government introduced several options for registered voters to verify that they had been effectively registered and that their details were correct. During this verification exercise, many voters raised concerns that the electoral areas in which they had registered had been changed without their knowledge and approval.
KPMG confirmed in its audit report that it had identified a trend of “abnormal” voter transfers between the 2017 general election and May 2022. The IEBC later announced that three IEBC officials had been arrested for involvement in illegal transfer of voters. On July 7, the chair of the IEBC announced that those officials were suspended and referred to the director of public prosecutions.

A manual register, just in time

The IEBC had initially intended to rely solely on the inbuilt Biometric Voter Register stored in the tablets. However, after a successful legal challenge just days before the 2022 election, Kenya's High Court intervened ordering the IEBC to also distribute a printed register as it found the IEBC's decision to remove a printed register unconstitutional, and not in accordance with backup provisions passed by Parliament in the wake of 2013's technical failures.
The inclusion of the manual register turned out to be essential. On election day, the IEBC reported that KIEMS kits failures necessitated resort to the manual register in 238 polling stations of the 46,229 total stations on election day.
Reports by large election observation missions such as the EU Election Observation Mission and the National Democratic Institute identified some problems with the KIEMS kits on election day, such as delays in identifying fingerprints, but found that most challenges could be addressed by backup measures built into the KIEMS system, such as via alphanumeric lookup and facial scanning with comparison against the national ID card.
After the results of the vote -- William Ruto winning 7,176,141 votes totalling 50.5% of the final vote while Raila Odinga got 6,942,930 totalling 48.8% of the final vote -- were announced by IEBC Chairman Wafula Chebukati, four IEBC board members dissented, claiming amongst other things that the vote tally totalled 100.01%. This was demonstrated to be a simple misunderstanding of rounding to two decimal places.

Hacking Accusations, 2022 Edition

The runner-up Raila Odinga (amongst other petitioners), immediately challenged the result in Kenya's Supreme Court.
Amongst the petitions were direct accusations of coordinated rigging levelled against the IEBC involving 56 hackers and the manipulation of digital copies of the form 34As.
In a strong judgment, the Court dismissed all challenges, finding that some of the petitioners had falsified evidence, and ruled that William Ruto had been rightfully elected President.

Conclusion

The Kenyan government's employment of election technologies such as biometric voter registration, electronic voter identification, electronic results transmission systems, and electronic candidate registration management systems has presented both challenges and positive outcomes for democracy.
Election technologies have the potential to improve transparency and foster public trust in electoral systems. In the case of Kenya, there has been a decrease in violence in relation to elections since the implementation of the above-mentioned election technologies. Although the extent to which, if any, the use of these technologies played a part in the decrease in violence around elections is difficult to conclusively assess, it is worth noting that the country has seen reduced occurrences of corruption and ballot box stuffing.
It is important to accentuate however, the specific circumstances in which the use of election technologies could be seen as a possible solution to uphold democracy and avoid corruption. In Kenya, the deployment of election technologies was an attempt to engender trust in the voting process by partially eliminating the potential for human corruption. Other instances where similar technologies have been used, such as in Mozambique's 2024 election, have led to irregularities around voter registration and a decrease in confidence and independence of the election administration. Additionally, as shown by the various technology failures mentioned above, it is important when rolling out any technology, that there is a suitable manual process in place that is able to replace the automation.
The use of these technologies in Kenya raise numerous questions that Election Observers must take into consideration, such as:

• Does the existing data protection legislation sufficiently protect voters' personal data, and does it cover the processing of personal data by public authorities?
• Have data protection and human rights risk assessments been undertaken in advance of the use of election technologies?
• Is it necessary to process biometric data in order to effectively register and identify voters?
• What heightened safeguards have been put in place for processing biometric data during the election process?, and
• What measures have been taken to ensure internet connectivity to facilitate the accurate transmission of election results?

These questions are crucial in assessing (biometric) data processing activities; analysing the potential for voter manipulation; protecting privacy; and better understanding the roles of all stakeholders to the electoral process, ranging from the electoral management body to the private companies providing the technologies.
To learn more about our general advocacy points in relation to the use of election technologies in the Kenyan context, see our accompanying advocacy piece. We advocate for the human rights-compliant use of these technologies, in order to improve privacy, transparency and public trust in elections and democratic processes.
